GVA STR10® Series

As seen in GLAREBOMB'S viral "Life as a Lighting Designer" video!

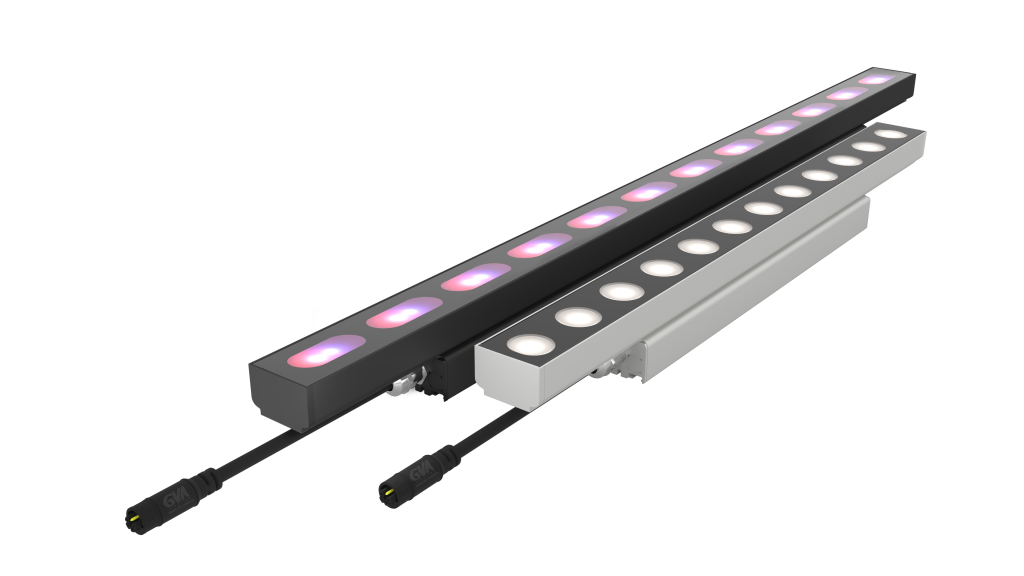

The GVA STR10® Series is a compact, high-power linear LED luminaire designed for precision wall washing and grazing. Built on GVA’s Color-Stream® platform, its slim profile, serious output, and precise optical control make it ideal for architectural façades, coves, landscape features, textured walls, and large-scale installations.

Available in monochromatic, color-changing, and dynamic white configurations, STR10 gives designers an incredible amount of control over both the light and the architecture it illuminates. Its weatherproof IP66 construction allows it to perform indoors or out, while multiple fixture lengths, optics, finishes, color temperatures, voltages, and control options make it highly adaptable to complex projects.

Design Possibilities

• Wall Grazing: Use precise narrow-beam optics, starting at 10°, to dramatically highlight stone, brick, concrete, wood, and other textured surfaces.
• Wall Washing: Create powerful, controlled illumination across architectural walls and façades.
• Color-Changing: RGB, RGBA, and RGBW options allow for saturated color, gradients, programmed scenes, and dynamic architectural effects.
• Dynamic White: Tune the color temperature of the light to change the appearance and atmosphere of the architecture throughout the evening.
• Monochromatic White: Available in 2700K, 3000K, 4000K, 5000K, and 6500K for projects that need powerful, consistent white light.
• Long Architectural Runs: GVA’s INFINITY® technology can support circuit runs up to 278 meters, or 912 feet, from a single power and data feed.
• Smooth Dimming & Effects: 12-bit dimming at 40 kHz and refresh rates up to 200 fps provide exceptionally smooth, flicker-free dimming, color transitions, and programmed effects.
• Indoor & Outdoor Applications: Designed for dry, damp, and wet locations with an IP66 rating and operation in 0 to 100% humidity.
• Multiple Sizes: Available in 1, 2, 3, 4, and 5-foot fixture lengths for flexible integration into the architecture.
• Finish Options: Available in Silver Matte Anodized, Black Matte Anodized, and custom colors upon request.

Specifications

Fixture Size: 49 mm (1.9") wide × 61 mm (2.4") high
Available Lengths: 300, 600, 900, 1200, and 1500 mm (1 to 5 ft)
Power: Up to 15W per 300 mm (1 ft)
Maximum Circuit Length: Up to 278 m (912 ft) with INFINITY®
IP Rating: IP66
Minimum Beam Angle: 10° FWHM
Dimming: 12-bit at 40 kHz
Refresh Rate: Up to 200 fps
Communication Speed: 6.25 Mbps
Input Voltages: INFINITY® 380V DC, ELV 48V DC, 120V AC, 208V AC, 230V AC, and 277V AC
Environment: Dry, damp, and wet locations; 0 to 100% humidity
Finish: Silver Matte Anodized, Black Matte Anodized, or custom colors

Certifications & Compliance

REACH Compliant, RoHS Compliant, cULus Listed, ANSI C136.31-2010, CE, IP66, and IK06.

Why Is This Product "Get a Quote"?

STR10 is not a one-size-fits-all fixture. It is a professional architectural lighting system that is configured specifically for the project.

Pricing depends on the total linear footage, fixture lengths, light output, optics, color temperature or color-changing configuration, voltage, controls, power and data requirements, mounting, accessories, cabling, and overall system layout.

The architecture matters too. Grazing a textured stone façade, washing a smooth exterior wall, illuminating a landscape feature, or creating a fully programmed color-changing installation can require completely different STR10 configurations.

That is why we need a little information about your project before we can provide accurate pricing.

Don't worry if you don't know which version, optic, voltage, or control system you need. Send us your drawings, elevations, dimensions, photos, or inspiration images and tell us what you want the lighting to accomplish. We can help determine the appropriate STR10 configuration and system components.
