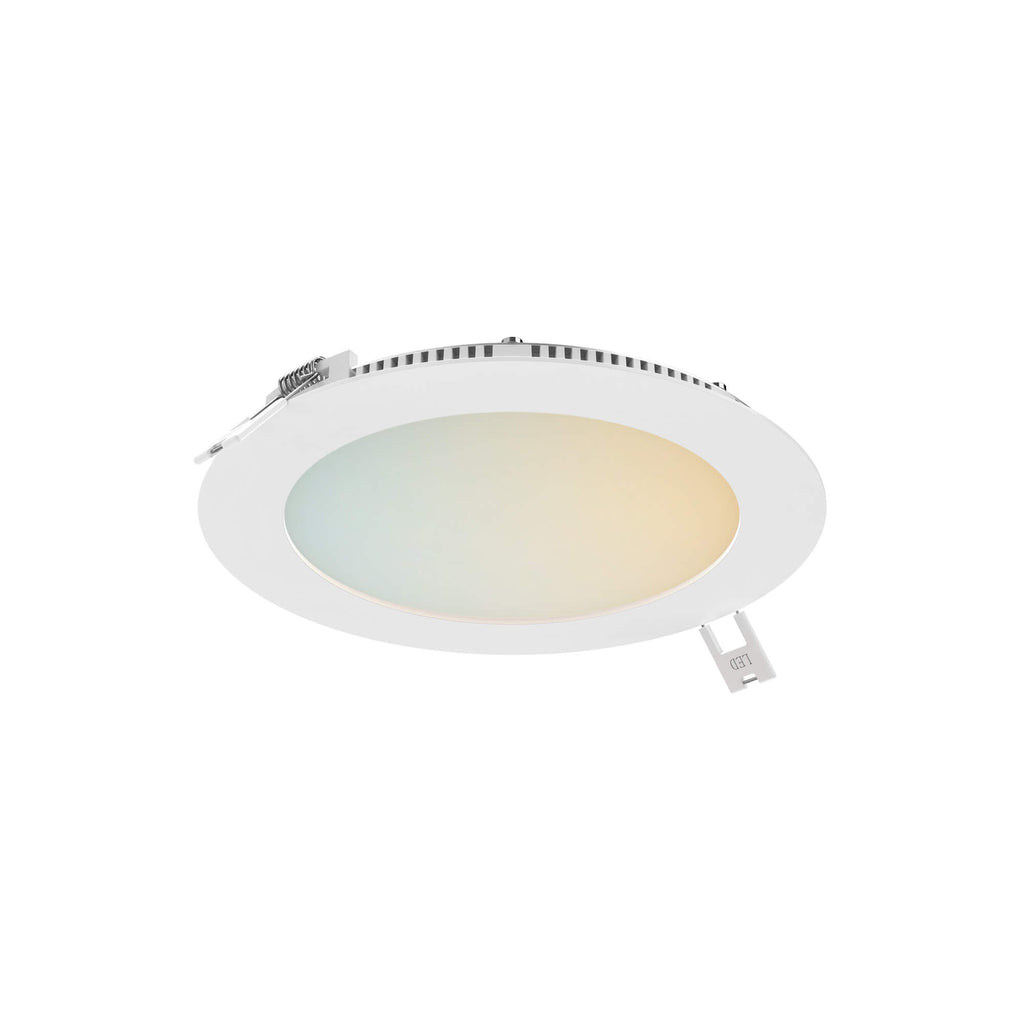

6" Round Smart Panel Light
6" Round Smart Panel Light
A 6" architectural recessed panel that disappears into the ceiling plane while delivering a full spectrum of light. DALS' Connect Pro engine pairs 2700 to 6500K tunable white with full RGB color, controlled wirelessly via app or remote, all from a single integrated fixture built for indoor and covered outdoor installations.
Design Intent
This 6" round smart panel light reduces the recessed downlight to its essential form: a slim, low profile disc that sits nearly flush with the ceiling plane. Behind that quiet profile is a fully integrated lighting engine: driver, LED array, and Bluetooth radio housed in a single junction box assembly, eliminating the need for a remote driver or additional wiring chases.
Lighting Performance
Color performance is the fixture's defining feature. Through the DALS Connect app or the companion Clicc remote accessory, the panel shifts seamlessly between a 2700K to 6500K tunable white range at 90 CRI and a full RGB spectrum, with a 150 degree beam angle that washes ceilings and walls in soft, even light rather than a hard pool. At 1200 delivered lumens, the 6" panel offers a meaningful step up in output over the smaller 4" version while keeping the same low profile and color range. Up to 100+ Connect Pro fixtures can be grouped over Bluetooth mesh for synchronized scenes and schedules, with optional expansion to 128 devices per zone via the Connect Pro Hub for voice control and remote access.
Materials and Build
The fixture's integrated junction box and driver assembly are engineered for IC-rated, air-tight installation directly against insulation, with a wet-location listing that extends use beyond dry interior ceilings.
Why Choose This Fixture
For designers and homeowners specifying smart, code-compliant lighting without visual clutter, this 6" panel offers a rare combination: Title 24 JA8 compliance, ETL certification, and a 5-year warranty, backed by color and color-temperature control that most comparably sized recessed fixtures do not offer.
Key Features
- Integrated junction box with built-in driver, no separate remote driver required
- Full RGB and tunable white (2700K to 6500K), 90 CRI
- 1200 delivered lumens at 20W
- DALS Connect Pro Bluetooth mesh: group and schedule 100+ fixtures (128 with Connect Pro Hub)
- Controlled via the DALS Connect app or Clicc remote accessory
- 150 degree beam angle for a soft, even ceiling wash
- IC-rated and air-tight for direct insulation contact
- Wet-location listed for covered outdoor and high-moisture interior use
- ETL certified, Title 24 JA8 compliant
- 5-year manufacturer warranty
Specifications
| Model | DCP-PNL6WH |
| Collection | Excel |
| Wattage | 20W |
| Delivered Lumens | 1200 lm |
| CRI | 90 |
| Color Temperature | RGB and CCT, 2700K to 6500K |
| Beam Angle | 150 degrees |
| Control Technology | DALS Connect Pro (Bluetooth) |
| Dimming | App and remote accessory compatible |
| Rated Locations | Indoor / Outdoor (covered), Wet |
| Certifications | IC-rated, Air-tight, ETL Certified, Title 24 JA8 |
| Warranty | 5 years |
Ideal Applications
- Larger rooms and taller ceilings needing higher lumen output with tunable white and color
- Covered porches, soffits, and outdoor living areas (wet-rated)
- Insulated ceiling assemblies requiring IC-rated, air-tight fixtures
- Whole-home smart lighting schemes using DALS Connect Pro mesh
- Renovation projects with limited ceiling depth
