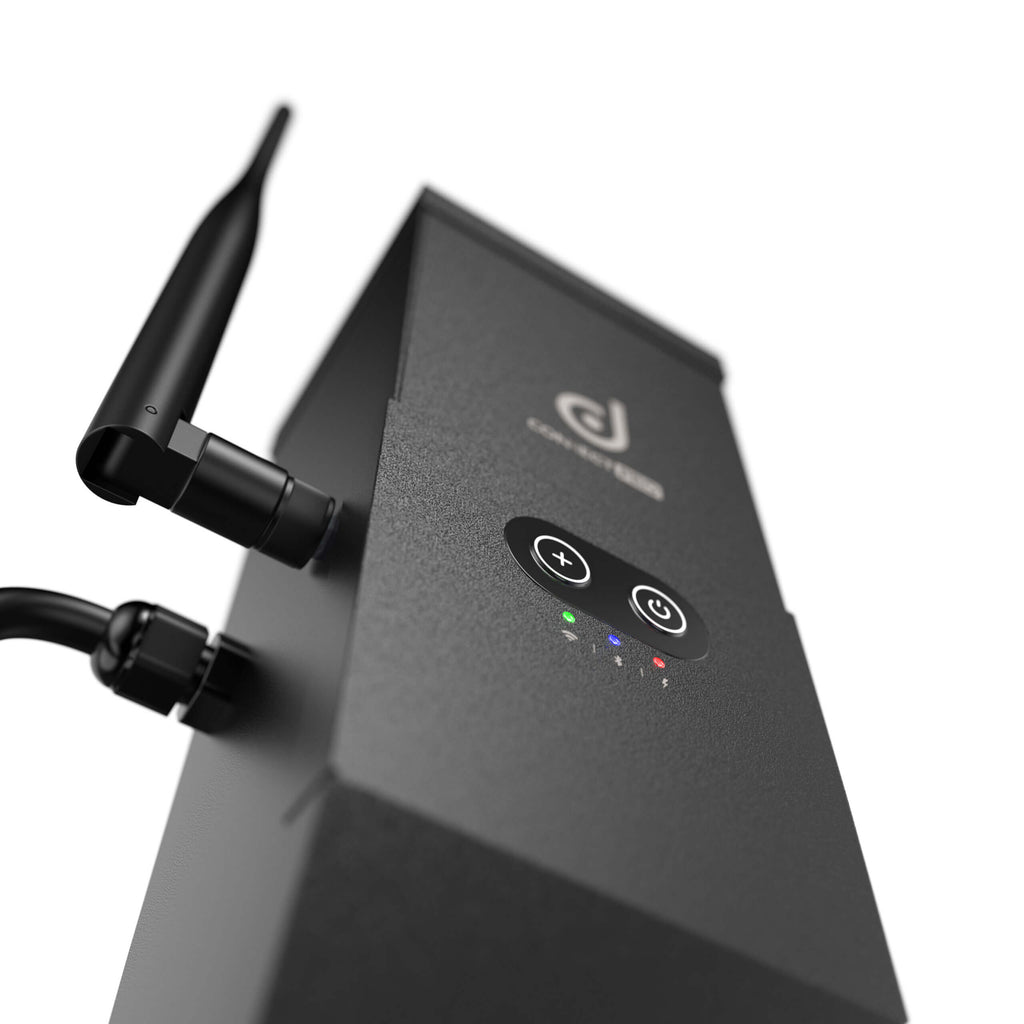

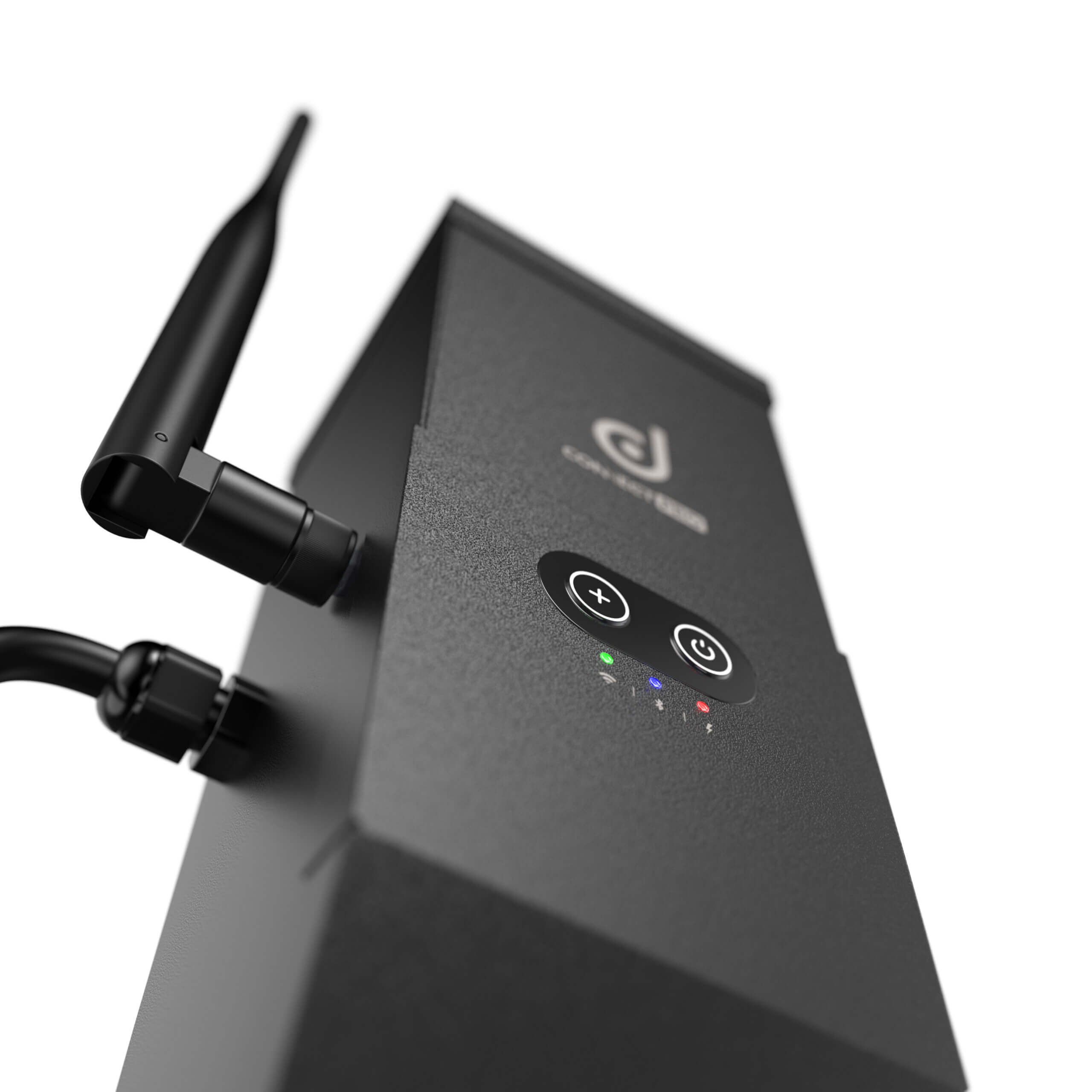

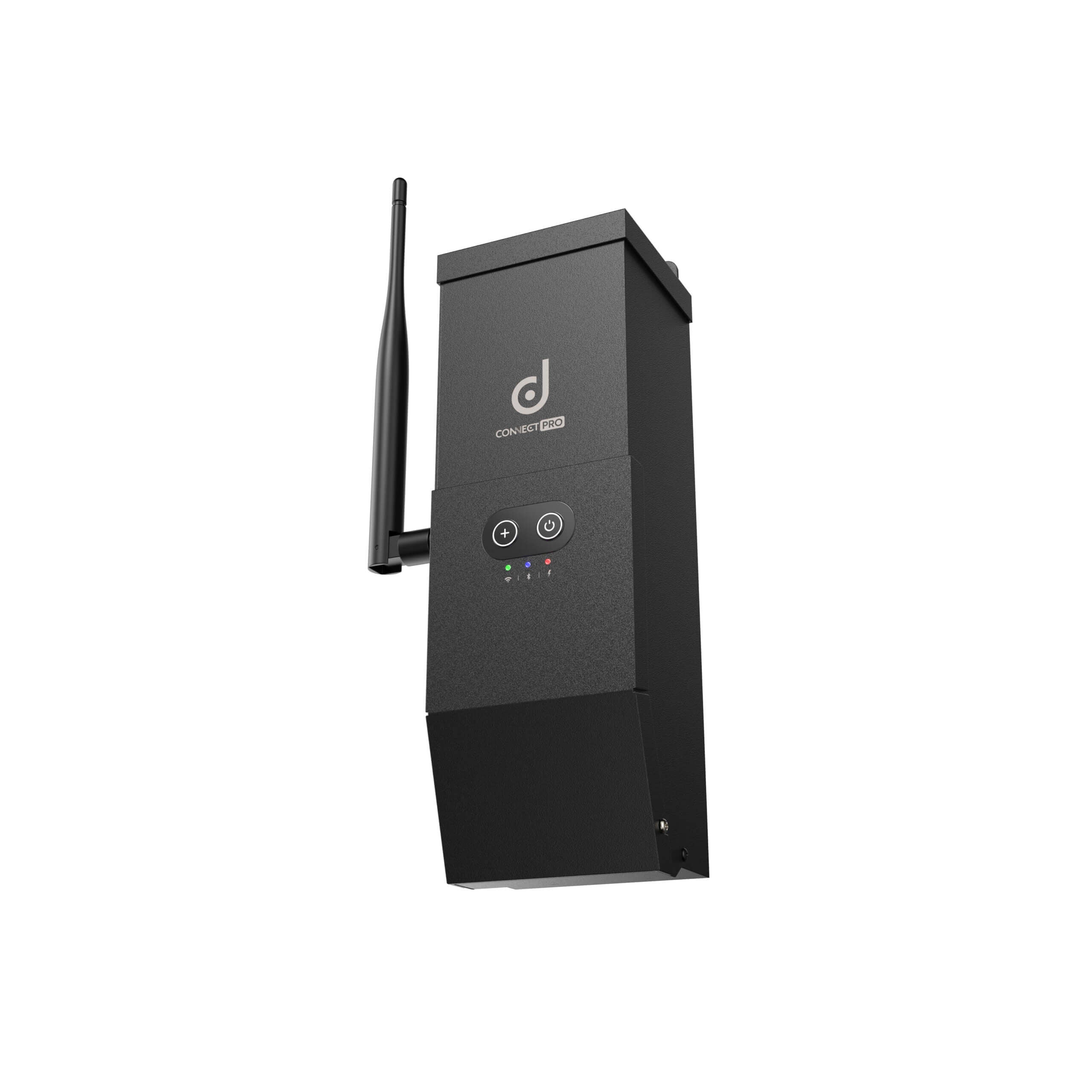

60W Low-Voltage Smart Magnetic Transformer
60W Low-Voltage Smart Magnetic Transformer
Engineered for reliability and smart performance, the Core transformer delivers consistent low voltage power for LED lighting systems while offering full smart control capability. With a 120V AC input and a 24V DC output, it suits both residential and commercial installations where power, protection, and connectivity matter.
An integrated junction box with multiple knockouts simplifies installation, while built in circuit breakers safeguard both the driver and the connected LED load. Please note that the transformer acts only as a gateway to control smart Bluetooth mesh fixtures. The transformer itself is not remotely controllable, the connected fixtures are.
Key Features
- Input 120V AC, 50/60Hz, output 24V DC

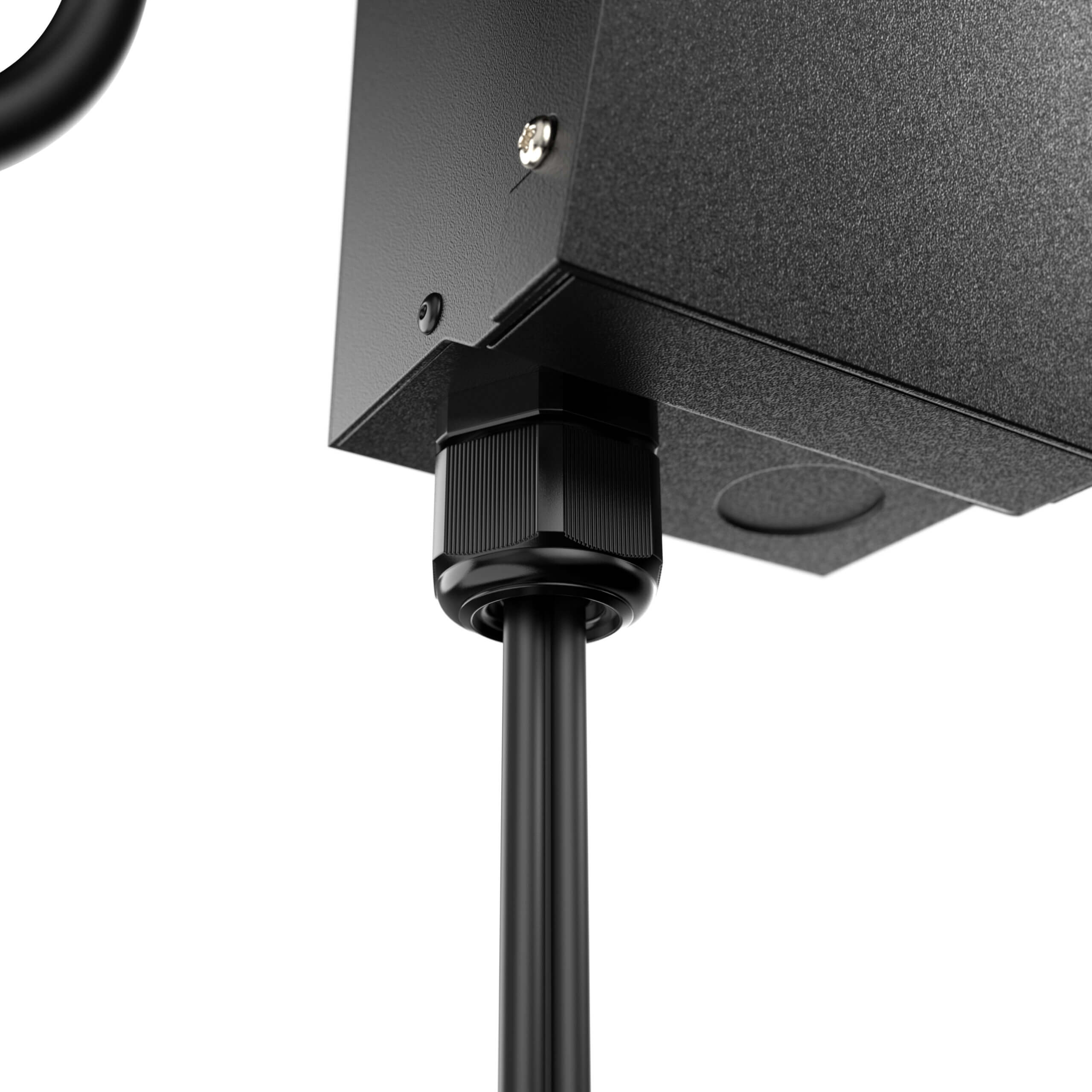

- Integrated junction box with multiple knockouts
- Circuit breakers protect both the driver and LED load
- Black powder coated metal enclosure
- Rated for dry and wet locations
- Encapsulated EI core magnetic transformer
- Fanless design with free air convection cooling
- Operating temperature negative 20°C to 70°C
- Vertical mounting with keyholes at the top
- Supports Wi-Fi and BLE mesh, works with the Dals Connect app
- Compatible with Google Assistant and Amazon Alexa
Specifications
| Model | DCP-MTR60 |
|---|---|
| Power | 60W |
| Input Voltage | 120V AC |
| Output Voltage | 24V DC |
| Power Cord Length | 65 inches |
| Power Factor | 0.9 |
| Thermal Class | B (130°C) |
| Certifications | Indoor, Outdoor, Wet Location, ETL Certified |
